PRODUCT DESCRIPTION
Product ID: WSC 104
Windowmaster WSC 104 smoke control panel for control of ±24V DC actuators or actuators with MotorLink® with a total power consumption up to max. 4A.
Delivery available only within the United Kingdom (excluding Channel Islands)
Smoke control panel for smoke and comfort ventilation
Compact smoke control panel for control of ±24V DC actuators or actuators with MotorLink® with a total power consumption up to max. 4A.
The panel can be used in small and medium sized buildings as well as in building sections e.g. stair cases, smaller sport centres and restaurants.
Opening speeds
This panel gives the possibility of two actuator speeds depending of the type of the connected actuator:
a) ±24V DC standard actuator - 1 speed (H&S)
b) MotorLink® actuator - 2 speeds (H&S / manually operated)
The different speeds
H&S: a fast speed with H&S ventilation and security functions.
H&S has always first priority
Manually operated: a faster and audiable speed when manually operated by comfort ventilation
DIP switches
The smoke control panel is equipped with 8 DIP switches, for easy configuration of smoke and/or comfort ventilation settings.
Ease of cabling

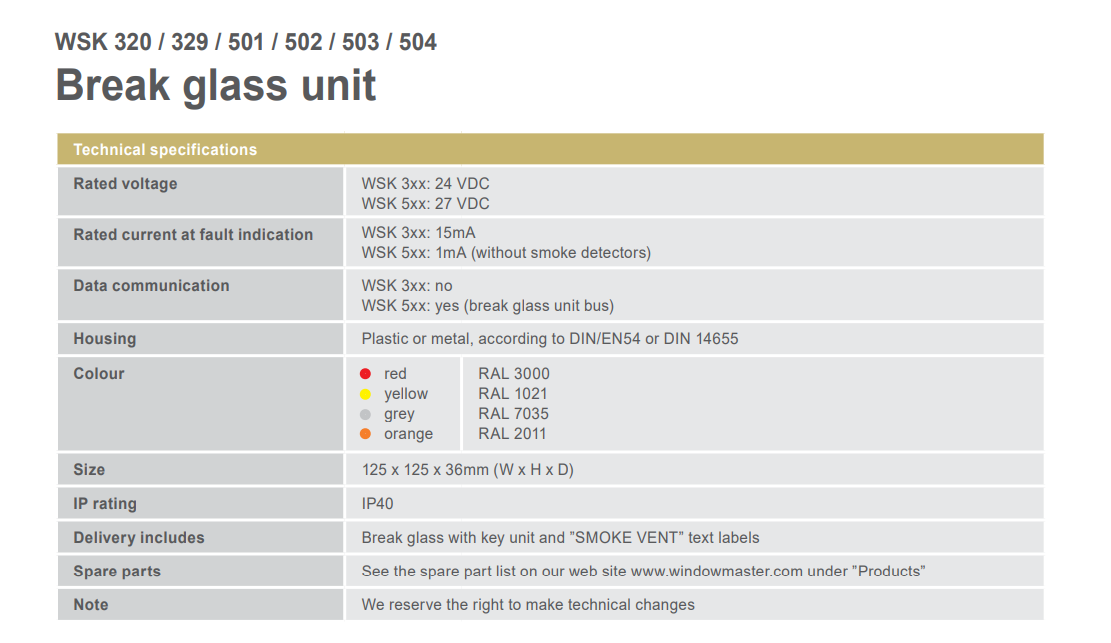

The use of bus technology for the break glass units means that the need for cabling in the building is significantly reduced. The break glass units are automatically detected when the smoke panel is configured.
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
Smoke ventilation according to EN 12101-10
The product is suitable for smoke ventilation according to EN 12101-10 and uses natural driving forces for the efficient exhaust of smoke and heat
-
230V rated voltage
The product use rated voltage 230V
-
Smoke ventilation according to ISO 21927-9
The product is suitable for smoke ventilation according to ISO 21927-9 and uses natural driving forces for the efficient exhaust of smoke and heat
-
±24VDC actuators
The product is to be connected to a ±24V actuator
-
MotorLink®
The product communicates with actuators with MotorLink® – an intelligent digital communication from WindowMaster
- Data Sheet - https://download.windowmaster.com/perfion/file.aspx?id=1BC6802B-826C-4BFD-96BB-1057E813A07B
